Spring MVC Tutorial

The Spring web MVC framework provides model-view-controller (MVC) architecture. The Spring framework is designed around a DispatcherServlet that dispatches requests to handlers, with configurable handler mappings, view resolution, locale, time zone and theme resolution as well as support for uploading files. The default handler is based on the @Controller and@RequestMapping annotations, offering a wide range of flexible handling methods.

In Spring Web MVC, DispatcherServlet class works as the front controller. It is responsible to manage the flow of the spring mvc application. The job of the DispatcherServlet is to take an incoming URI and find the right combination of handlers (generally methods on Controller classes) and views (generally JSPs) that combine to form the page or resource that's supposed to be found at that location.

Use of DispatcherServlet:-

• Spring’s MVC Inversion of Control is configured in dispatcher-servlet.xml file.
• Any dependency Injection for the beans is also configured in the dispatcher-servlet.xml like ConstructorInjection, SetterInjection.
• Spring MVC provides a feature to initialize and inject the dependencies from the dispatcher-servlet.xml
• ViewResolvers are also configured in dispatcher-servlet.xml
• Predefined tags supported by Spring Framework makes easier for the user to initialize the beans.

The request processing workflow of the Spring Web MVC DispatcherServlet is illustrated in the following diagram.

The request processing workflow in Spring Web MVC (high level)

• The Model encapsulates the application data and in general they will consist of POJO.
• The View is responsible for rendering the model data and in general it generates HTML output that the client's browser can interpret.
• The Controller is responsible for processing user requests and building appropriate model and passes it to the view for rendering.

The DispatcherServlet is an actual Servlet, and it is declared in the web.xml of your web application.

<?xml version="1.0" encoding="UTF-8"?>

<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns="http://java.sun.com/xml/ns/javaee" xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd" version="2.5">

  <context-param>

    <param-name>contextConfigLocation</param-name>

    <param-value>/WEB-INF/spring/root-context.xml</param-value>

  </context-param>

  <listener>

    <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>

  </listener>

  <servlet>

    <servlet-name>appServlet</servlet-name>

    <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>

    <init-param>

      <param-name>contextConfigLocation</param-name>

      <param-value>/WEB-INF/spring/appServlet/servlet-context.xml</param-value>

    </init-param>

    <load-on-startup>1</load-on-startup>

  </servlet>

  <servlet-mapping>

    <servlet-name>appServlet</servlet-name>

    <url-pattern>/</url-pattern>

  </servlet-mapping>

</web-app>

web.xml

After initializing DispatcherServlet , framework will try to load the application context from a file named servlet-context.xml located in the application's WebContent/WEB-INF/spring/appServlet directory.

Following is the servlet-context.xml file which is located at WebContent/WEB-INF/spring/appServlet :-

<?xml version="1.0" encoding="UTF-8"?>

<beans:beans xmlns="http://www.springframework.org/schema/mvc"

                xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"

                xmlns:beans="http://www.springframework.org/schema/beans"

                xmlns:context="http://www.springframework.org/schema/context"

                xsi:schemaLocation="http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc.xsd

                                http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd

                                http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd">

                <!-- DispatcherServlet Context: defines this servlet's request-processing infrastructure -->



                <!-- Enables the Spring MVC @Controller programming model -->

                <annotation-driven />

                <!-- Handles HTTP GET requests for /resources/** by efficiently serving up static resources in the ${webappRoot}/resources directory -->

                <resources mapping="/resources/**" location="/resources/" />

                <!-- Resolves views selected for rendering by @Controllers to .jsp resources in the /WEB-INF/views directory -->

                <beans:bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">

                                <beans:property name="prefix" value="/WEB-INF/views/" />

                                <beans:property name="suffix" value=".jsp" />

                </beans:bean>



                <context:component-scan base-package="edu.constant.code" />

</beans:beans>

servlet-context.xml

The context:component-scan element defines the base-package where DispatcherServlet will search the controller class.

Here, the InternalResourceViewResolver class is used for the ViewResolver.

Implementing Controllers

There are two basic annotations used in controller class:-

• @Controller – is used to mark class as controller.
• @RequestMapping(value=”/helloworld”, method = RequestMethod.GET) – is used to map the class with specified name.

package edu.constant.code;

import java.text.DateFormat;

import java.util.Date;

import java.util.Locale;

import org.slf4j.Logger;

import org.slf4j.LoggerFactory;

import org.springframework.stereotype.Controller;

import org.springframework.ui.Model;

import org.springframework.web.bind.annotation.RequestMapping;

import org.springframework.web.bind.annotation.RequestMethod;

/**

 * Handles requests for the application home page.

 */

@Controller

@RequestMapping("/home")

public class HomeController {



                private static final Logger logger = LoggerFactory.getLogger(HomeController.class);



                /**

                 * Simply selects the home view to render by returning its name.

                 */

                @RequestMapping(method = RequestMethod.GET)

                public String home(Locale locale, Model model) {

                                logger.info("Welcome home! The client locale is {}.", locale);



                                System.out.println("Welcome home!");



                                Date date = new Date();

                                DateFormat dateFormat = DateFormat.getDateTimeInstance(DateFormat.LONG, DateFormat.LONG, locale);



                                String formattedDate = dateFormat.format(date);



                                model.addAttribute("serverTime", formattedDate );



                                return "home";

                }



                /**

                 * Simply selects the home view to render by returning its name.

                 */

                @RequestMapping(value = "/helloworld", method = RequestMethod.GET)

                public String helloworld(Locale locale, Model model) {

                                logger.info("Welcome hello world! The client locale is {}.", locale);



                                System.out.println("Welcome hello world!");



                                Date date = new Date();

                                DateFormat dateFormat = DateFormat.getDateTimeInstance(DateFormat.LONG, DateFormat.LONG, locale);



                                String formattedDate = dateFormat.format(date);



                                model.addAttribute("serverTime", formattedDate );



                                return "helloworld";

                }



}

HomeController

Here, there are two URLs :

http://localhost:8080/SpringMVCDemo/home

http://localhost:8080/SpringMVCDemo/home/helloworld

View:-

This is the simple JSP page, displaying the message returned by the Controller. It must be located inside the WEB-INF/jsp directory for this example only. There are two pages - home.jsp & helloworld.jsp

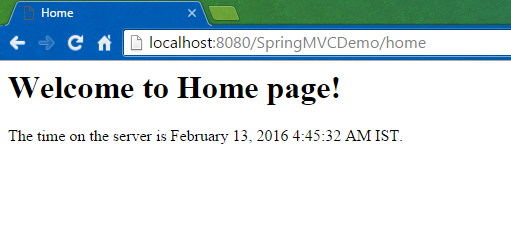

Output of http://localhost:8080/SpringMVCDemo/home - which is home.jsp

Output of http://localhost:8080/SpringMVCDemo/home/helloworld - which is helloworld.jsp

Download this spring mvc example from github:-

Download Spring MVC Example
